显示屏尺寸 Display Size

4.3

inch

准亿产品型号ZHUNYI Model

Z43017-P40-S783-Y1

-

显示屏分辨率 Display Resolution

480*RGB*272

pixels

LCD可视区尺寸 LCD Active Area

95.04*53.86

mm

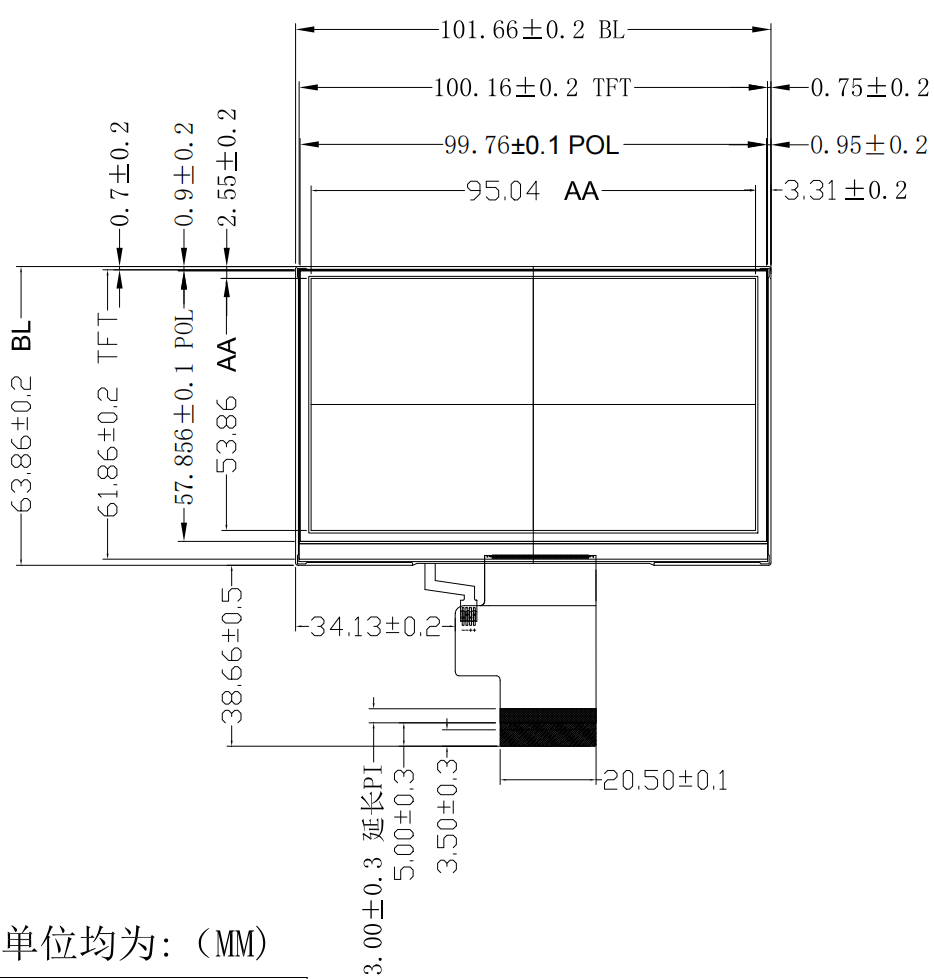

LCM外形尺寸 LCM  Dimension

101.66*63.86*2.58

mm

LCM PIN定义  Interface

RGB

-

LCM视角度View Direction (Gray Inversion)

全视角

-

运行温度Operating Temperature

-20°C~ 70°C

-

储存温度Storage Temperature

-30°C~ 80°C

-
